Heavy-Duty Wind-Resistant Solar Farm Mounting System for High-Wind Areas
10-Year Warranty Solar Panel Mounting System
25-Year Service Life PV Mounting Brackets
216km/h Wind Load Solar Panel Roof Mounting Brackets
| Place of Original: | Hebei, China |
| Brand Name: | HuiTai |
| Certificate: | CE,ISO9001,SGS |
Share
Product Description

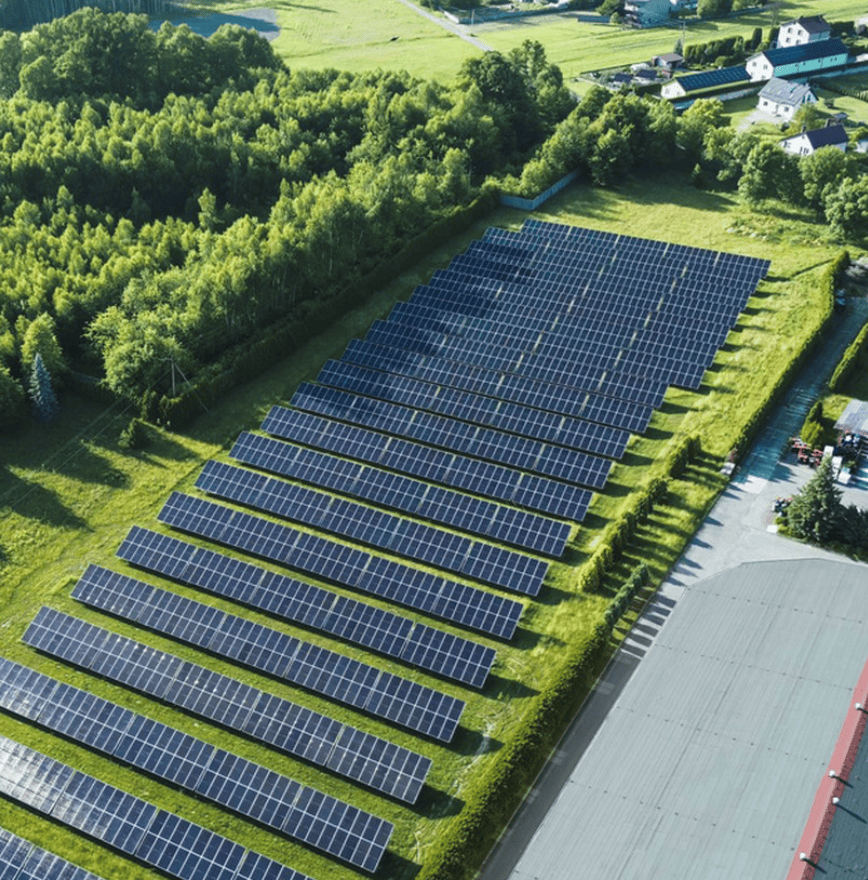

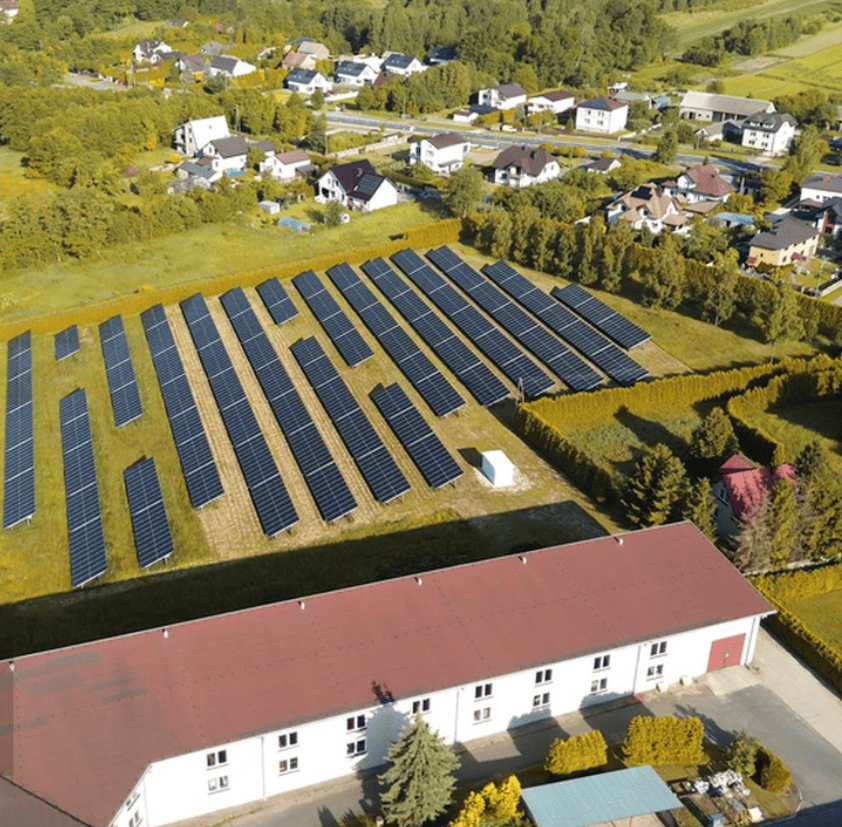

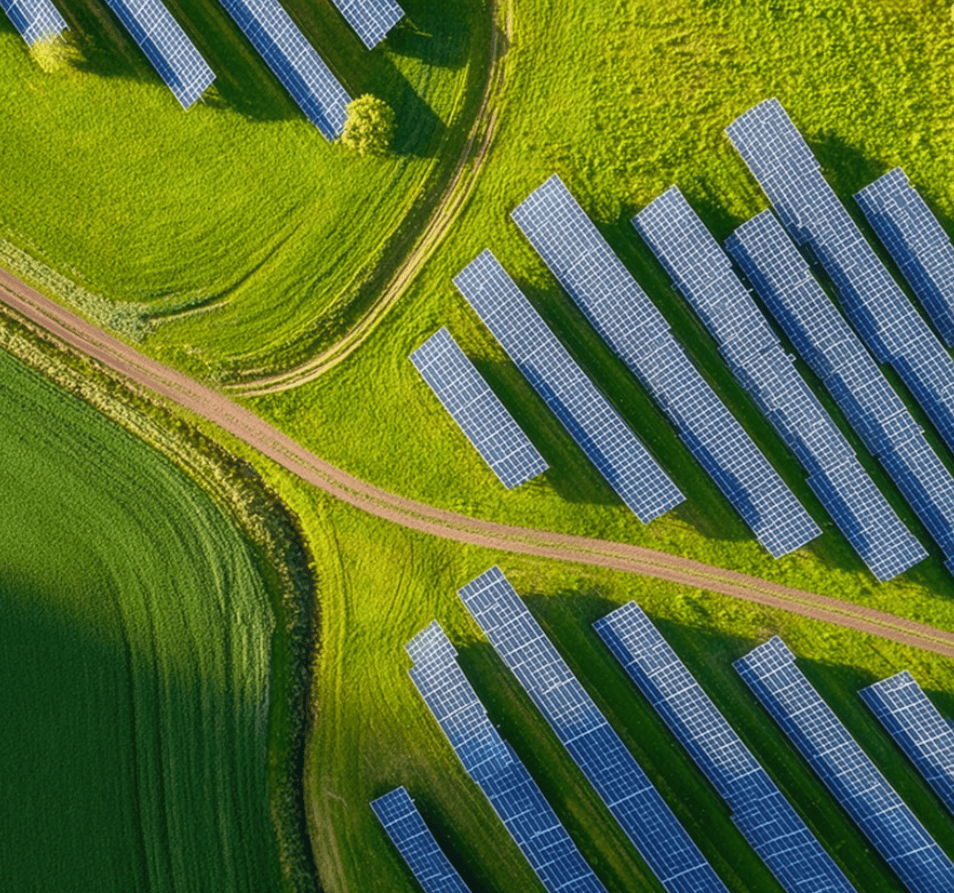

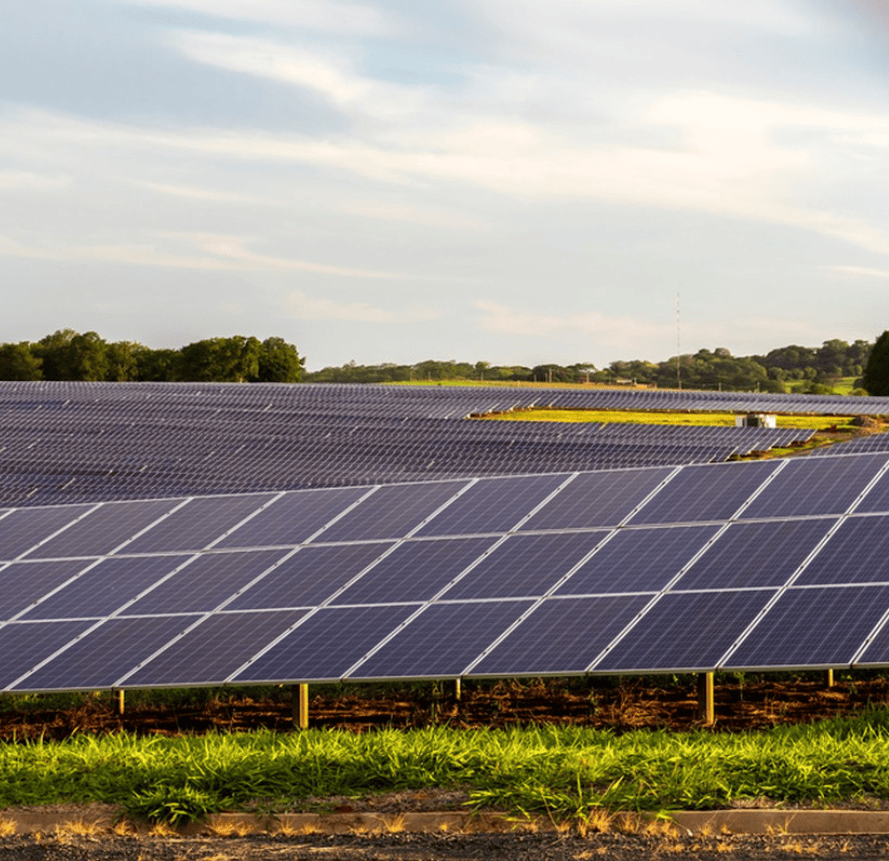

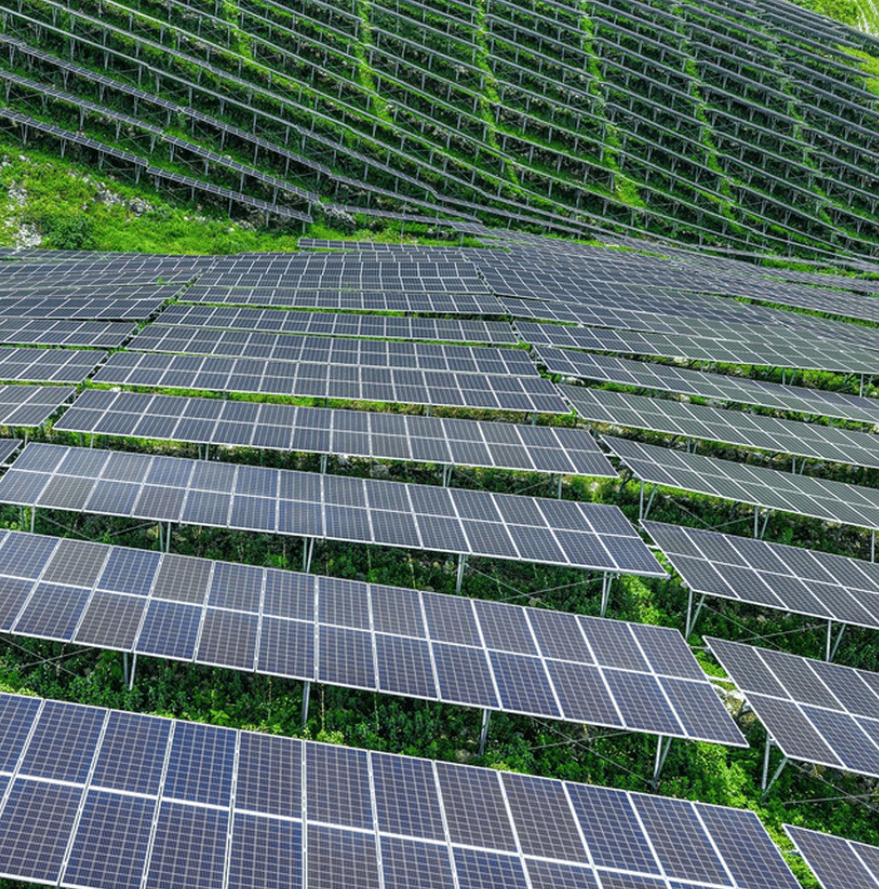

Huitai’s high wind solar mounting system is a project-configured fixed-tilt solution for utility-scale PV plants, exposed farmland and large open-field installations. It combines AL6005-T5 aluminum profiles with SUS304 stainless-steel components and supports portrait or landscape module layouts with a 5°–30° tilt range.
Unlike standard ground racking, this heavy-duty solar farm mounting system is configured around the project location, design wind speed, snow load, array geometry, soil conditions and foundation requirements.
A wind-speed figure alone does not determine whether a mounting structure is suitable for a project. Terrain exposure, array height, module dimensions, tilt angle, row length, foundation capacity and connection design all affect the wind pressure and uplift transferred through the structure. For other utility-scale configurations and foundation options, view Huitai’s Solar Farm Mounting System range.
Depending on the approved project design, the wind-resistant solar racking structure can be configured with ground screws, pile foundations or concrete foundations. Posts, beams, rails, diagonal braces, clamps and fasteners are selected as a complete load-transfer system rather than as separate components.
Huitai supports project-based customization for EPC contractors, solar farm developers, installers and distributors. Available support includes product configuration, layout and drawing support, installation guidance, OEM production and export packaging.
You can also review Huitai’s technical support services for specifications, documentation and installation assistance.
| Model No. | Solar Farm Mounting System | Certification | ISO, CB, CE |
| Application | Home, Industrial, Commercial | Specification | Normal, Customized |
| Installation Site | Farmland | Max Wind Speed | 42m/S |
| Installation Angle | 60m/S | Snow Load | 1.4kN/M2 |
| Example of PV Tilt Angles | 5°~30° | Material | Stainless Steel 304 & Aluminum 6005 - T5 |
| Array | Landscape/Portrait | Transport Package | Customized |
| Trademark | HUITAI | Origin | China |
Packaging & Delivery
| Package Size | 25.00cm * 20.00cm * 27.00cm |
| Package Gross Weight | 500.000kg |
The installation system of solar agricultural ground support is higher than the ground, which does not affect the growth of basic crops, but can also fully utilize solar energy.
The surface of the rack has undergone high anode oxidation treatment, making it less prone to rusting. The solar greenhouse provides a perfect combination of power generation and cultivation. Farmers can fully utilize solar energy for basic daily activities such as irrigation, heating, and lighting.
Excess electricity can be sold to the power grid to generate income. Long term excellent anti-corrosion performance.
| Installation site | Farmland |
| Max Wind Speed | 42m/s |
| Max Snow Load | 1.4KN/m² |
| Installation angle | 5°~30° |
| Material | Stainless Steel 304 & Aluminum 6005 - T5 |
| Certificate: | CE/ISO9001/AS NZS1170 |
| Array | Landscape/Portrait |
| Warranty | 10 years |
This high wind solar mounting system is suitable for:
Is the stated wind speed suitable for every project location?
No. Any published wind-speed value is a reference configuration, not universal approval for every site. Final suitability depends on local codes, terrain exposure, array height, module layout, soil conditions and the approved structural design.
Can the foundation be customized?
Yes. Ground screw, pile and concrete foundation options can be considered according to the soil report, pull-out requirements and project construction plan.
What information is required for a quotation?
Please provide the project location, required capacity, module datasheet, array layout, tilt angle, design wind and snow loads, ground clearance, soil information and preferred foundation type.
Send your site and module information through Contact Us. Huitai will recommend a suitable high wind solar mounting system configuration after reviewing the project requirements.
