Durable Solar Ground Mounting Structures for Residential and Commercial Use
10-Year Warranty Solar Panel Mounting System
25-Year Service Life PV Mounting Brackets
216km/h Wind Load Solar Panel Roof Mounting Brackets
| Place of Original: | Hebei, China |
| Brand Name: | HuiTai |
| Certificate: | CE,ISO9001,SGS |
Share
Product Description
The Huitai residential and commercial solar ground mounting system is a fixed-tilt steel racking solution. The structure uses high-strength carbon steel with hot-dip galvanized or zinc-aluminum-magnesium coating options. Panel quantity, row arrangement, tilt angle and foundation connection can be configured according to module dimensions, project location and site conditions.
For additional configurations and material options, view our complete range of solar ground mounting systems.
| Model No. | Solar Ground Mounting System | Condition | New | |
| Certification | ISO, CB, CE | Application | Home, Industrial, Commercial | |
| Specification | Normal, Customized | Material | High-Strength Carbon Steel | |
| Wind Load | 60m/S | Snow Load | 1.4kN/M2 | |
| Example of PV Tilt Angles | Within 15 to 45º | Installation Method | Customized | |
| Technical Support | Online | System Height | 18-36 Inches Above Ground | |
| Certifications | ISO 9001, CE,RoHS,ISO14001,ISO45001 | Transport Package | Customized | |
| Trademark | HUITAI | Origin | China |

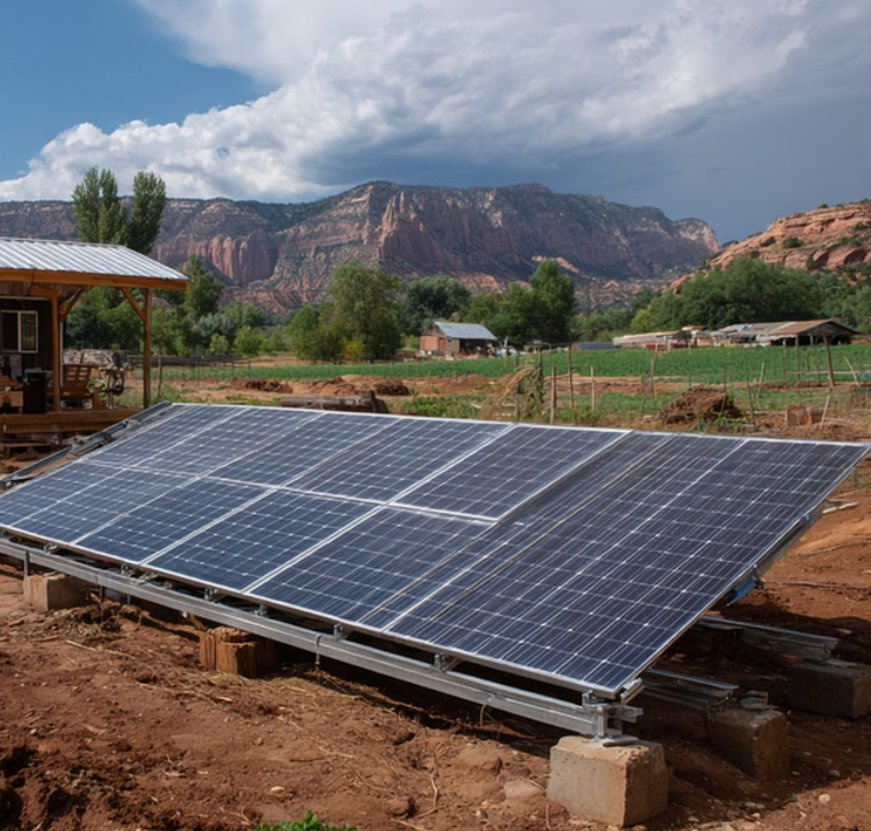

This fixed tilt ground mount solar racking can be configured for:
♦ Residential ground-mounted PV arrays
♦ Commercial buildings with available surrounding land
♦ Factory and warehouse solar power projects

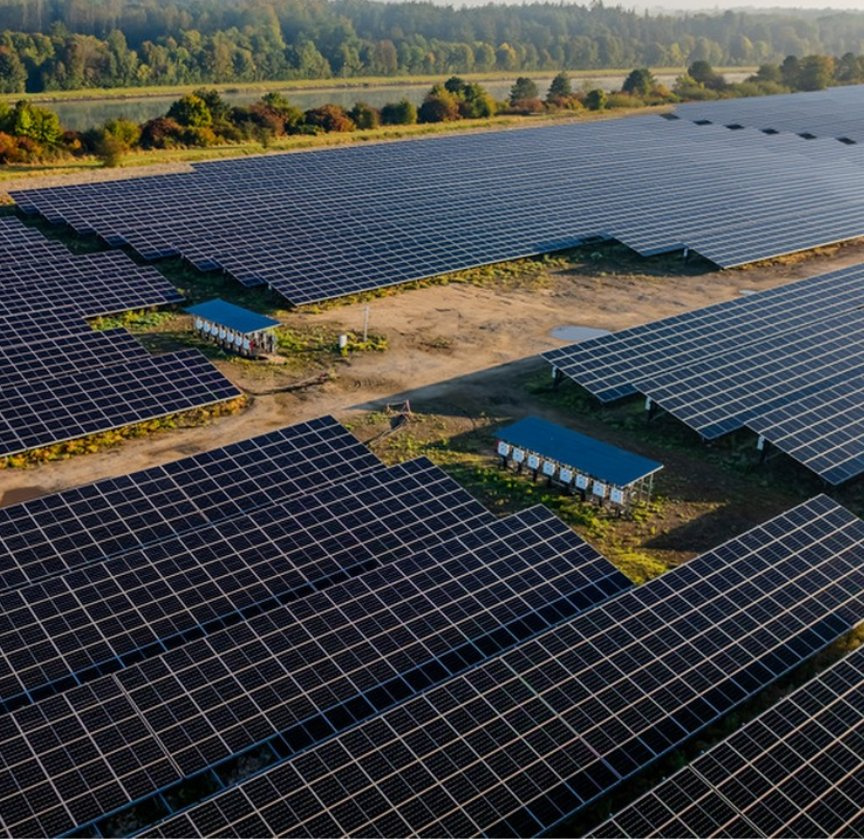

♦ Small and medium-sized open-field PV installations
♦ Standardized ground mount packages supplied by installers or distributors
The compact arrangement is particularly practical where the available plot is limited but buyers still require customized module layout, installation angle and ground clearance.
The system can be connected to concrete-embedded steel piles or a ground screw foundation. Foundation selection should be based on soil conditions, site access, civil-work requirements and the project engineer’s load assessment.
Guide rails, steel supports, pressure plates, fasteners, nuts, bolts and gaskets are assembled through mechanical connections. Huitai also provides project-related documentation and remote assistance through its technical support services.
Packaging & Delivery
| Package Size | 25.00cm * 20.00cm * 27.00cm |
| Package Gross Weight | 500.000kg |
| Parameter | Specification |
| Material | High-strength carbon steel |
| NO.of Panel | Custom |
| Number of rows of racks | Custom |
| Wind load | 60m/s |
| Snow load | 1.4KN/M2 |
| Coating | Hot-dipped galvanized/Zn Al Mg alloy coating |
| Application scenarios | Ground |
| Installation method | Fastener installation |
| Type of piling | Cement-embedded steel piles (precast or poured on-site) or Steel ground screw pile |
| Corrosion Resistance | 30 Year(salt spray and UV resistant) |
| Technical support | Online |
| Main Components | Guide rails, hot-dip galvanized C-shaped steel, nuts and bolts, pressure plates, spiral ground piles, gaskets |
| Load Capacity | Good |
| System Height | 18-36 inches above ground |
| Certifications | ISO 9001, CE,Rohs,ISO14001,ISO45001 |
| Warranty | 5-year material warranty; |
Compatibility depends on the module’s dimensions, weight and frame thickness rather than its wattage alone. Send the module datasheet so that the rail, clamp and support arrangement can be checked.
Ground screws can reduce concrete work and simplify construction on suitable sites. Concrete-embedded steel piles may be selected where required by soil conditions or the project foundation design. The final option should be confirmed from site and engineering information.
Yes. The published tilt range is 15–45°, while the listed system height is 18–36 inches. The final configuration should be confirmed according to the project layout and load requirements.
The typical system includes steel supports, guide rails, clamps or pressure plates, nuts, bolts, gaskets and the selected foundation components. The final bill of materials is confirmed with the quotation.
